Flagship platform

DREAM3D-NX

v7.4.1

DREAM3D-NX is a cross-platform, modular software suite for preparing, reconstructing, quantifying, instantiating, and meshing multidimensional, multimodal microstructural data. Used by academic, government, and industry researchers worldwide.

Download Documentation
DREAM3D-NX overview
Screenshots

See it in action

Visualization mode
Visualization mode

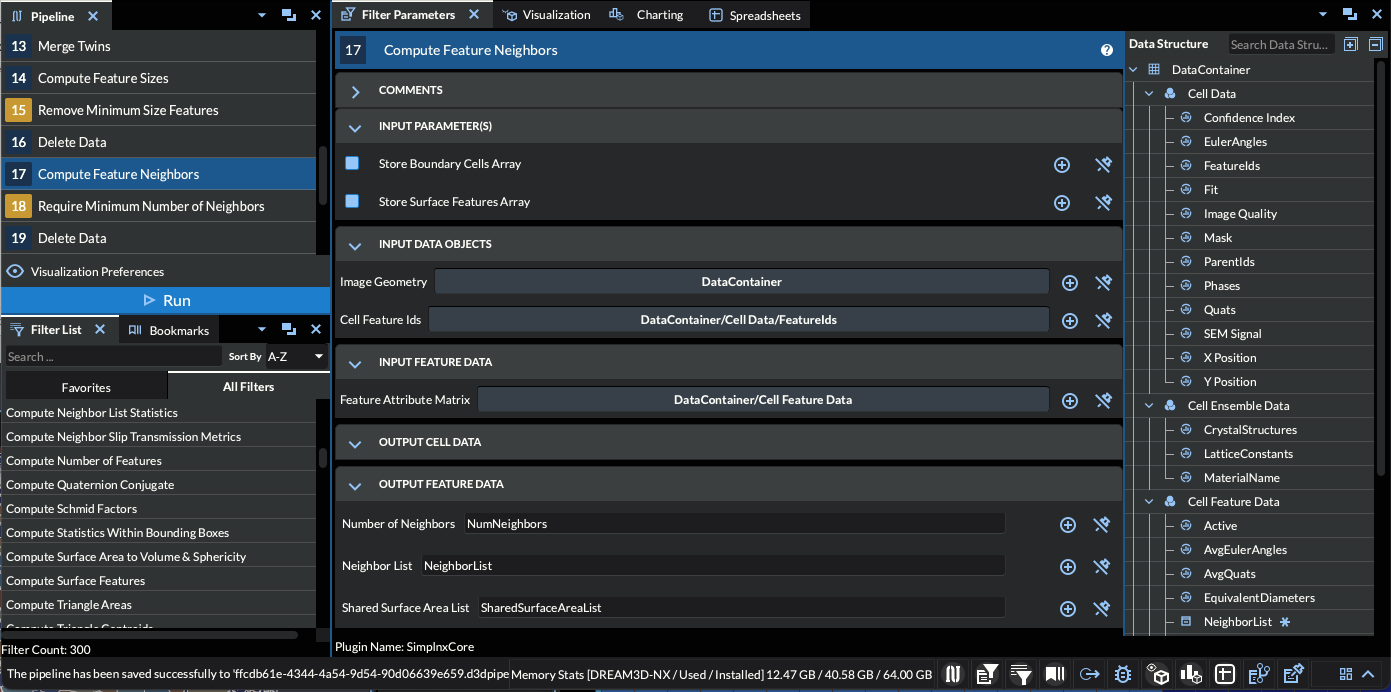

Pipeline mode
Pipeline mode

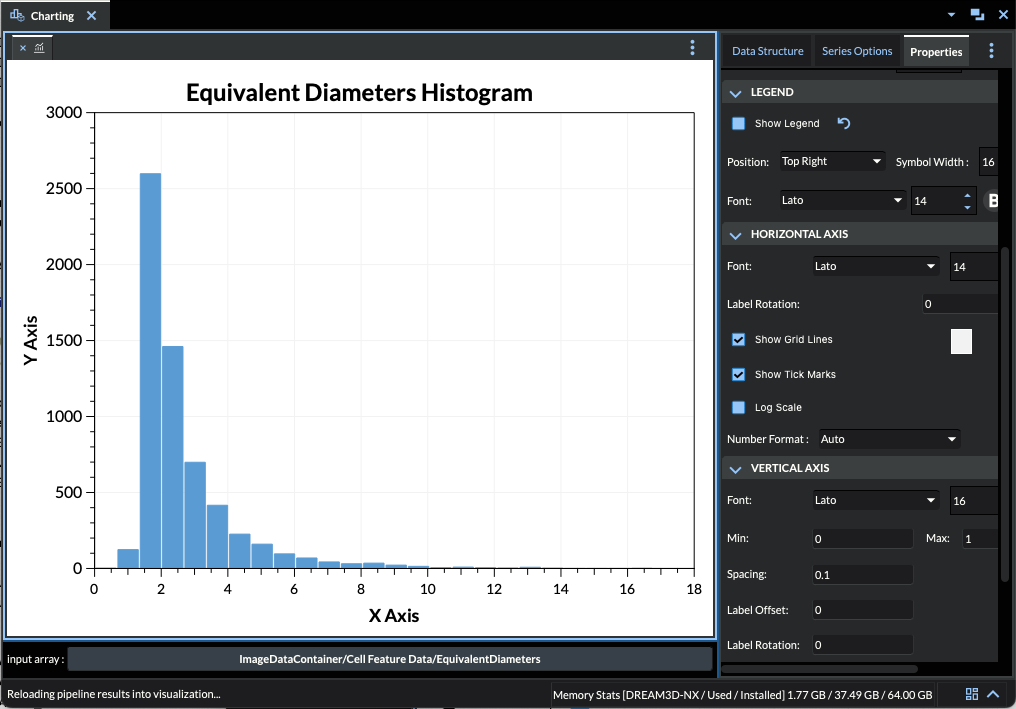

Charting module
Charting module

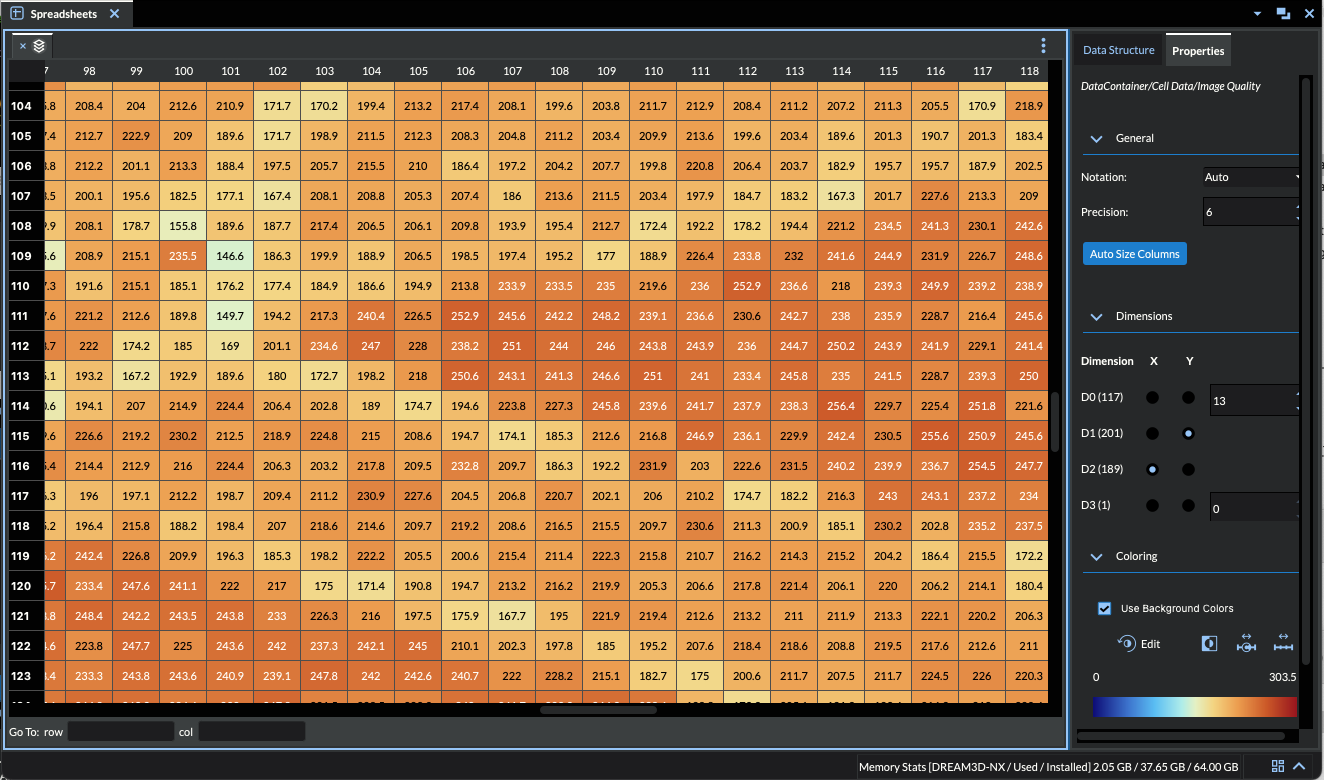

Spreadsheet view
Spreadsheet view
Features

What you can do with DREAM3D-NX

Multi-modal import

Read EBSD, CT, and arbitrary HDF5 datasets through a unified data model.

3D reconstruction

Reconstruct full 3D microstructures from 2D section data with statistical fidelity.

Integrated VTK visualization

Inspect data interactively in the visualization pane without leaving the application.

Microstructure statistics

Compute grain size, shape, orientation, and neighborhood statistics across reconstructions.

FEM export

Generate finite element meshes ready for downstream simulation tools.

Python API

Drive the same pipeline operations from Python scripts using the simplnx library.
