Feature gallery
An overview of the visualization, charting, and pipeline-management features in the DREAM3D-NX desktop application.

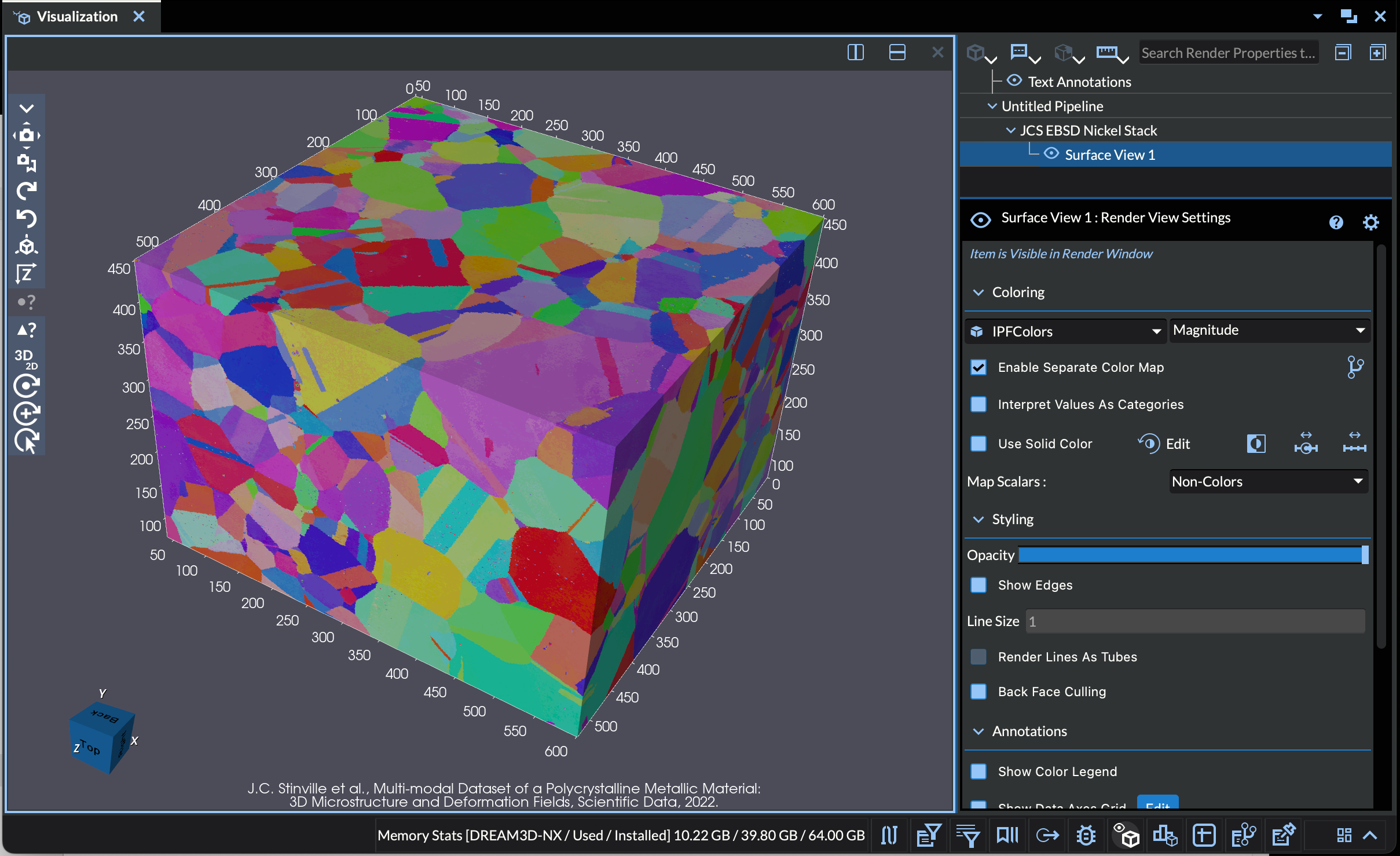

Integrated 3D visualization
Surface rendering of EBSD orientation data — interrogate microstructure interactively without leaving the application.

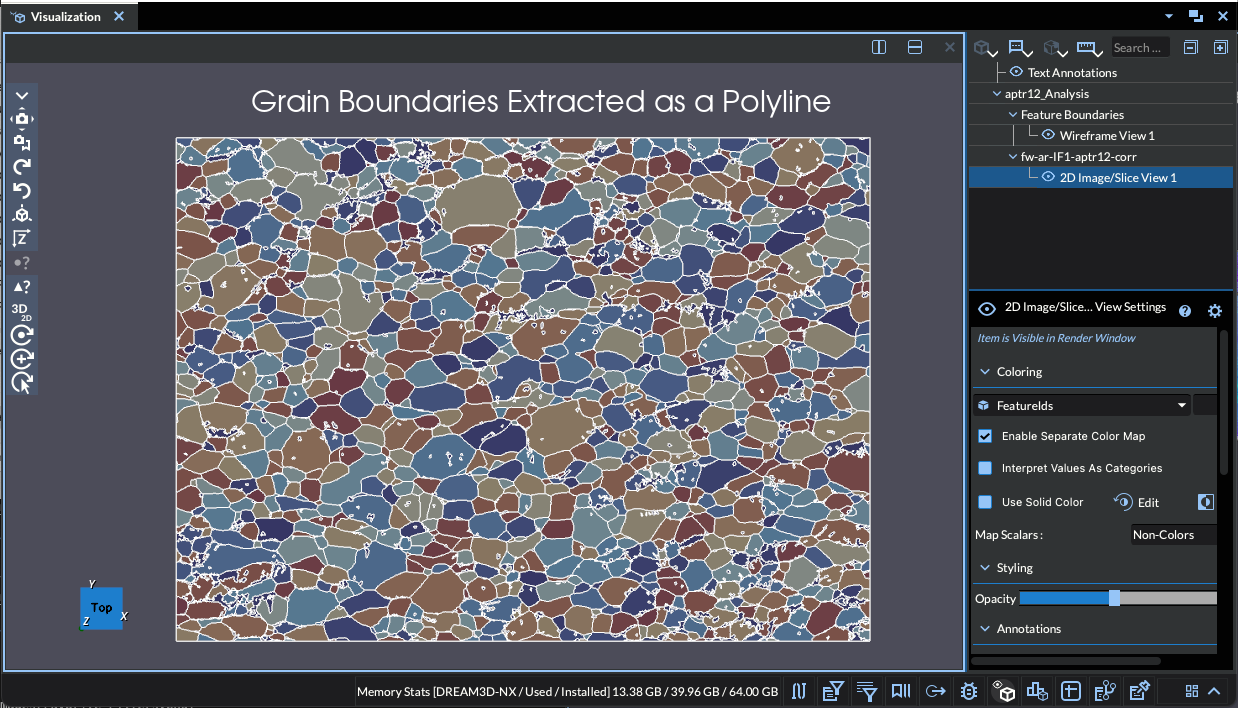

Polyline rendering
Render polyline geometry directly in the visualization view.

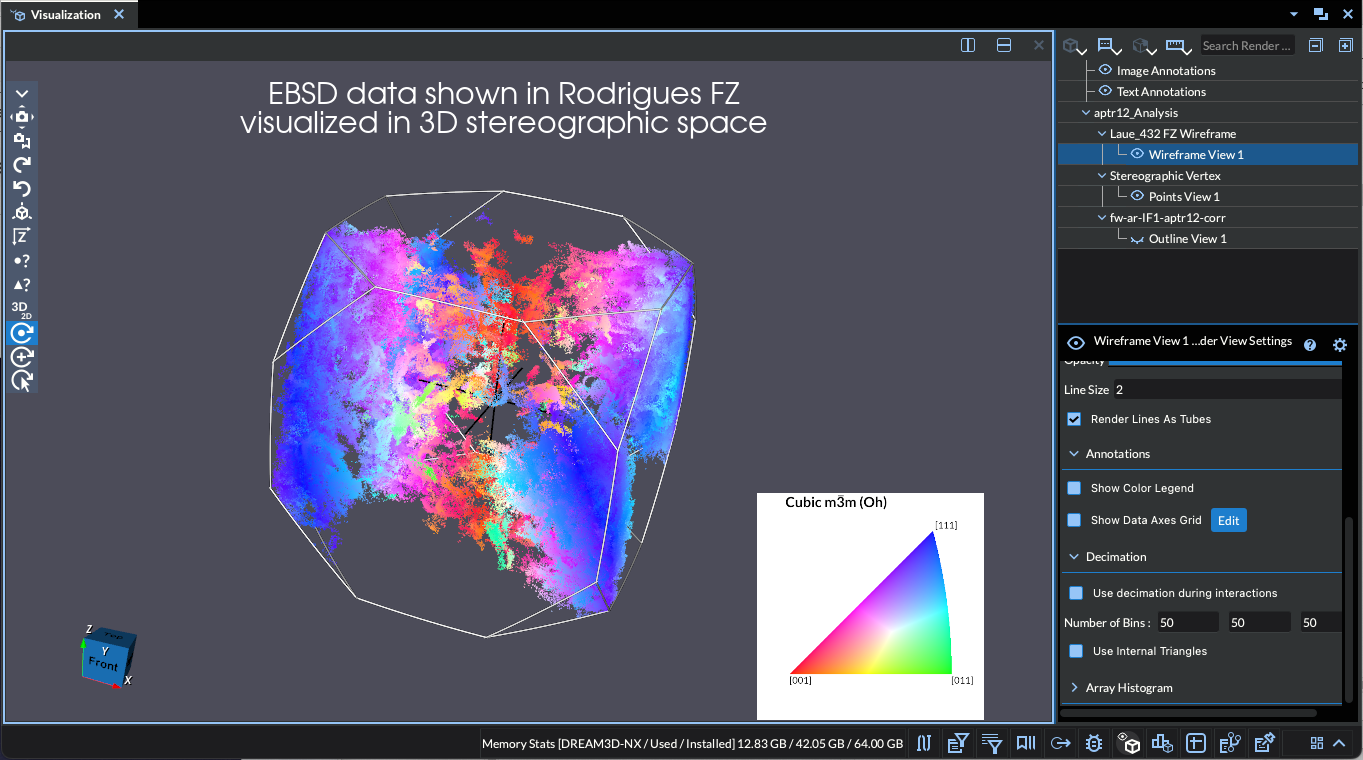

Point cloud rendering
Visualize sparse, scattered, or sampled data as a 3D point cloud.

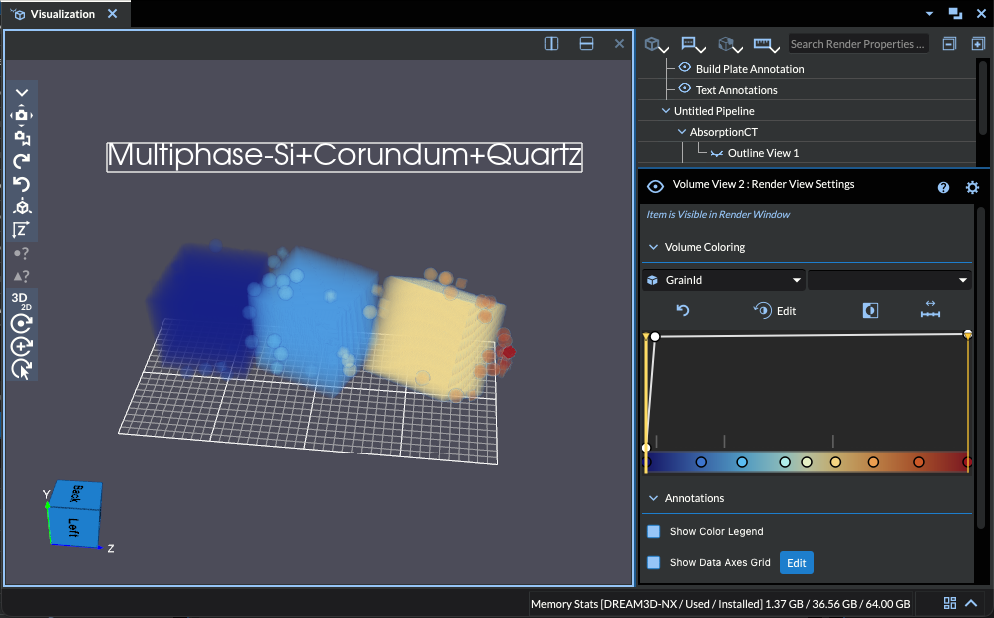

Volume rendering
Continuous 3D volume rendering for tomographic and synthetic datasets.

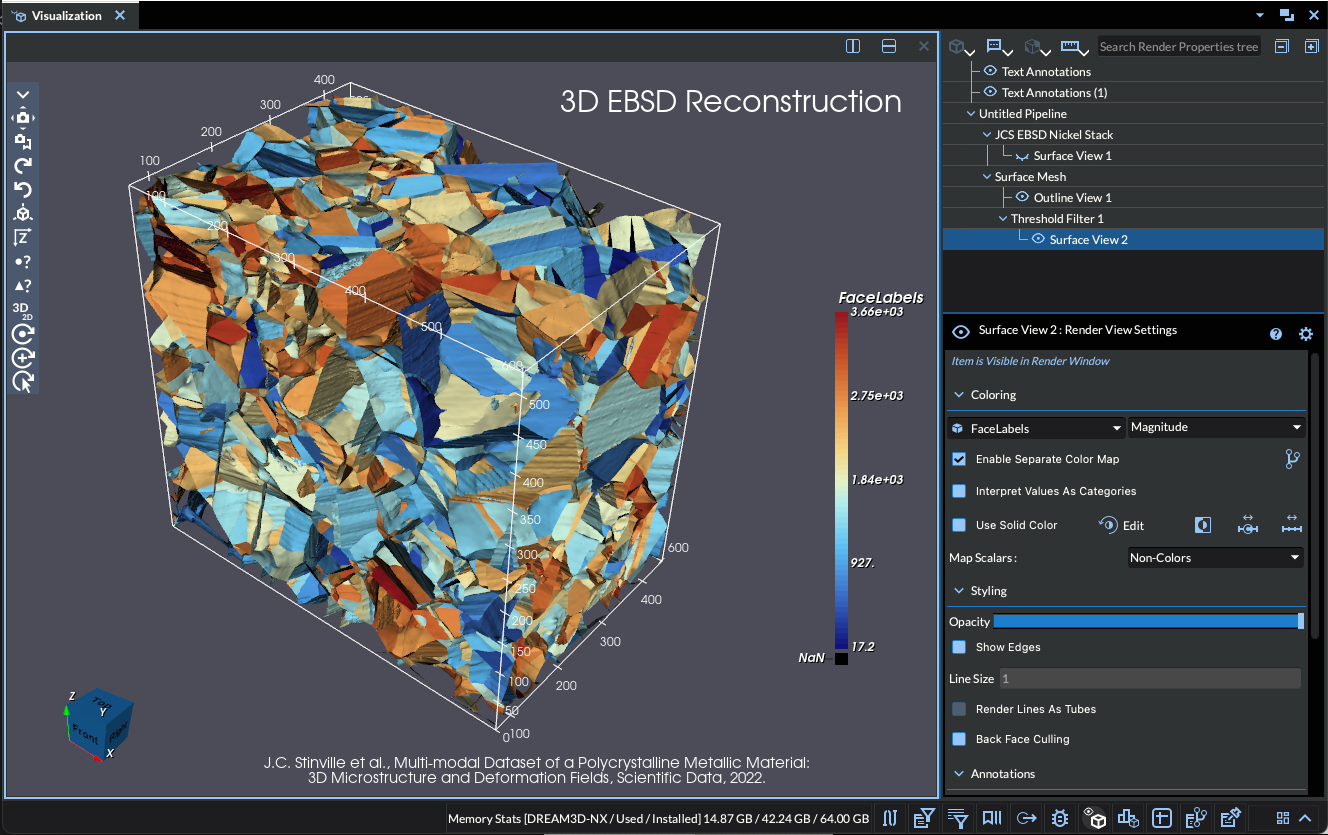

3D EBSD processing
Reconstruct, clean, and quantify 3D EBSD data from serial-sectioning experiments.

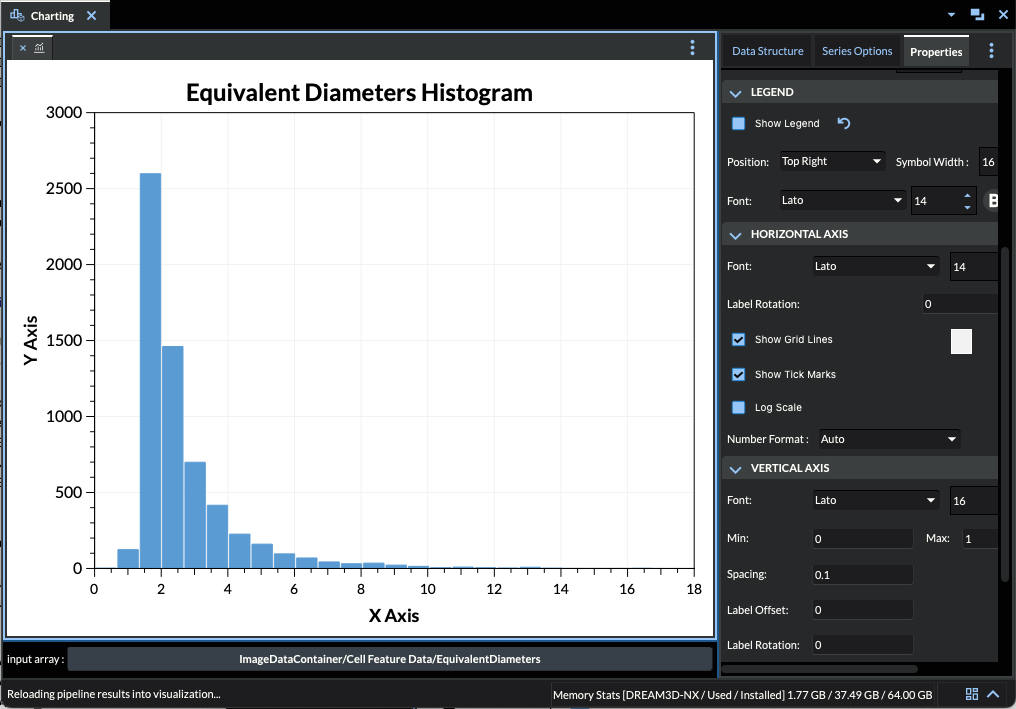

Charting module
Publication-quality 2D charts generated directly from your pipeline output.

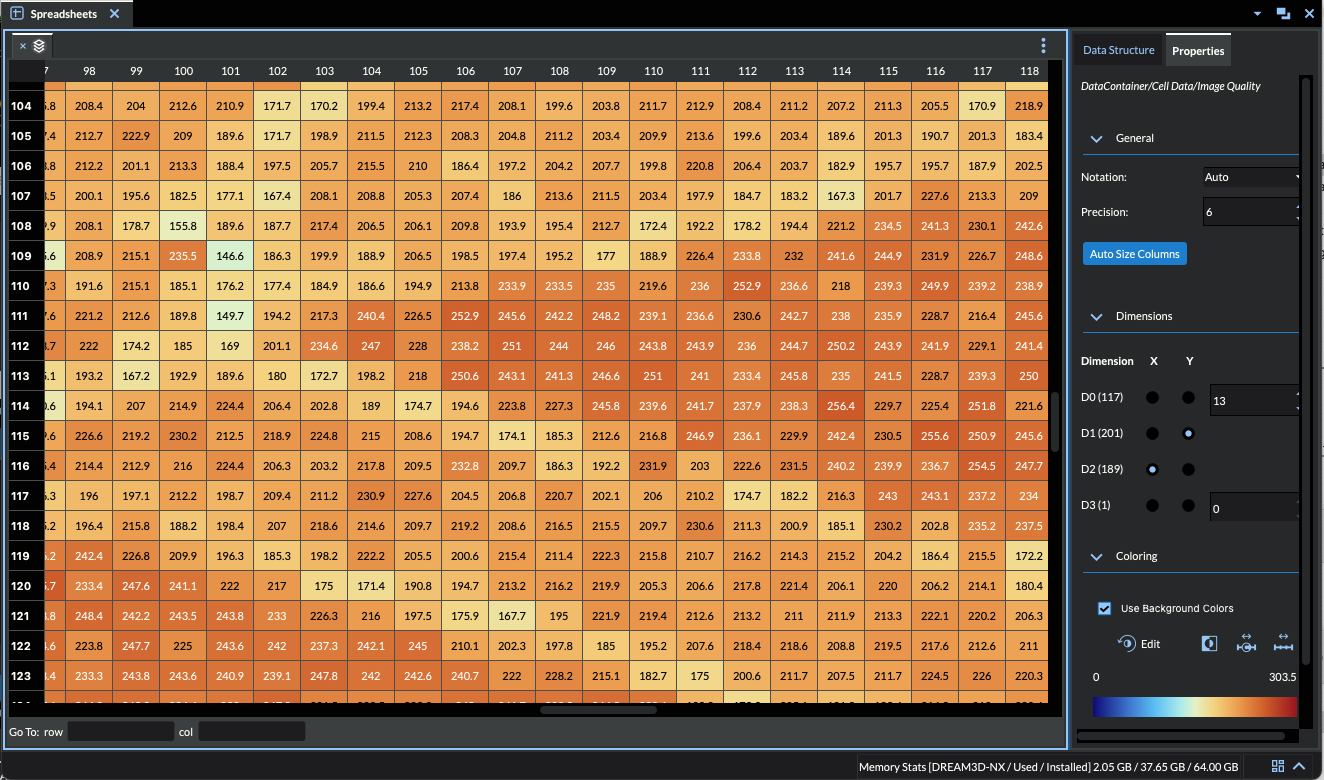

Multidimensional spreadsheet
Inspect raw arrays in a familiar spreadsheet view, ready to copy into Excel, Sheets, or Numbers.

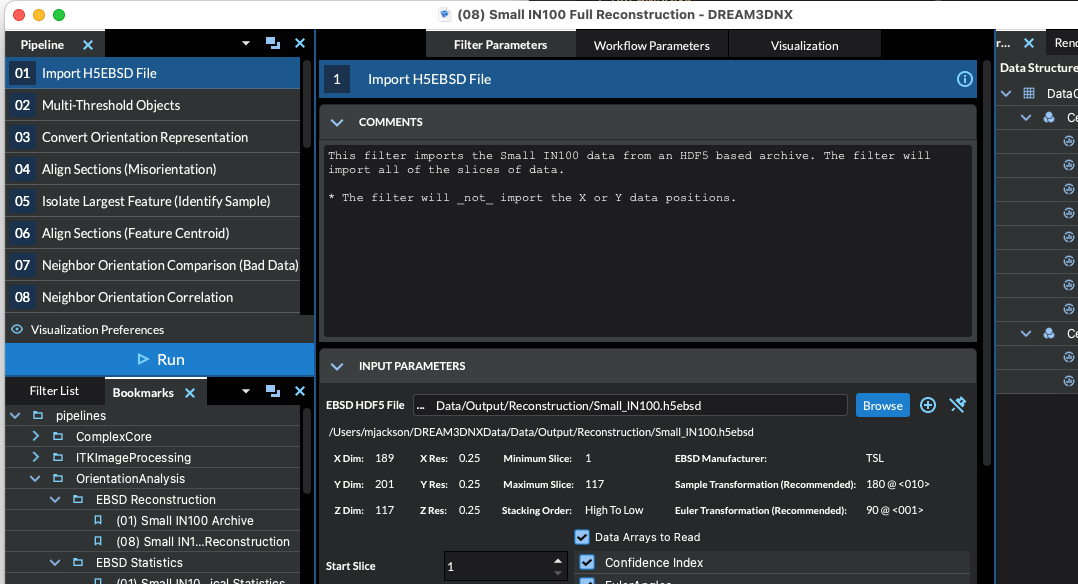

Filter comments
Every filter has a comment area — document the filter's purpose, why specific parameter values were selected, or notes for collaborators.

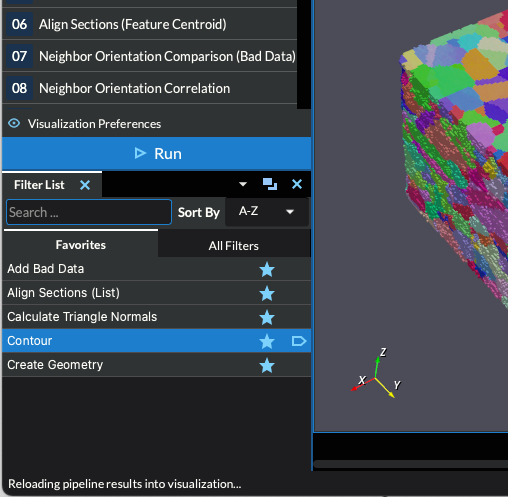

Favorite filters
Filters you use often can be added to a favorites list for quick access.

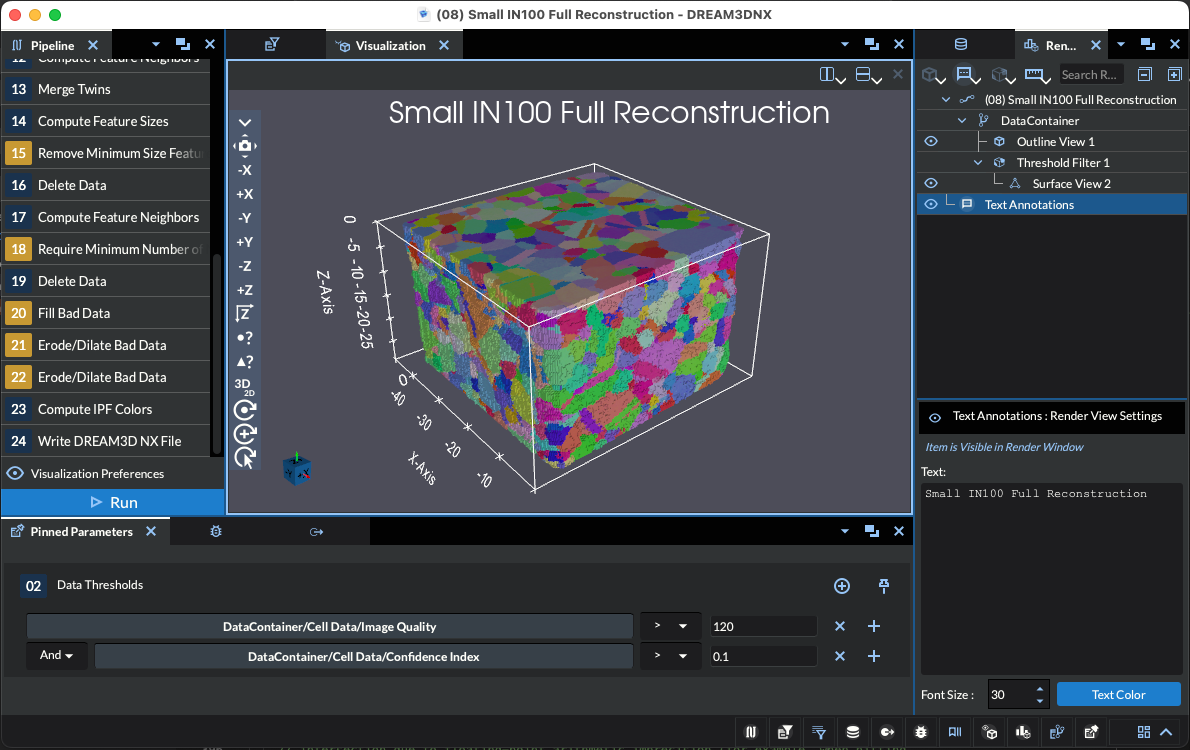

Pinned parameters
Pin specific parameters from inside long pipelines into a separate widget. Iterate on those parameters and rerun without scrolling through the full pipeline.

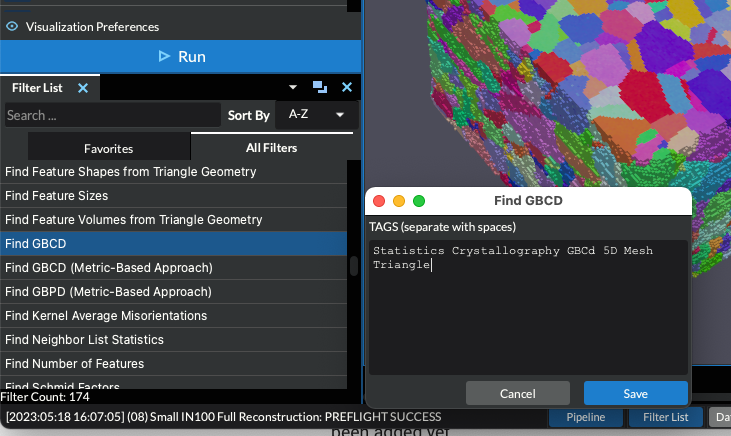

Filter tags
Filters carry user-editable tags for quick search. Tags are saved across sessions.

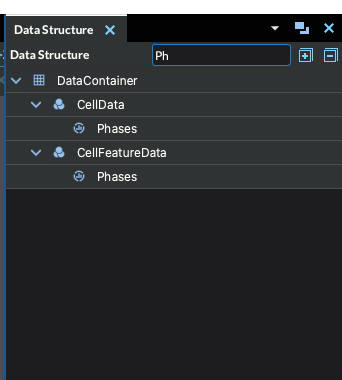

DataStructure view search
Filter the DataStructure tree by typing in the search field — instantly narrow large datasets to the arrays you care about.

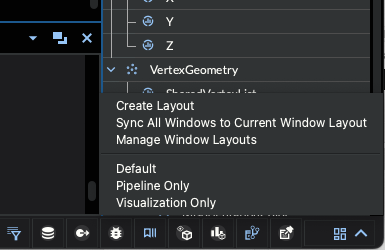

User-defined window layouts
Define your own window layouts based on the task at hand. DREAM3D-NX ships with a few presets, and you can save as many additional layouts as you need.
