Release notes · August 4, 2024

7.0.0-Release Candidate 13

7.0.0-Release Candidate 13

This is the 7.0.0 Release Candidate 13. Below are listed the many bug fixes and updates that have gone into this release.

  • Release Date: AUG 05 2024
  • Expiration Date: OCT 05 2024

Known Issues

  • Undocking a widget, then using the native “close” button to hide the widget may crash DREAM3D-NX
  • An issue was identified with the monoclinic symmetry operators. Orientation calculations that depend on a monoclinic crystal symmetry may be incorrect.
  • After creating a visualization split view where the “Spreadsheet View” is the new view type, closing that split will cause DREAM3D-NX to possibly crash
  • The histogram generation in the “Compute Attribute Array Statistics” may possibly be erroneous. See https://github.com/BlueQuartzSoftware/simplnx/issues/1044 for more information.
  • Synthetic Building Filters are not yet implemented
  • This update breaks a lot of pipelines (and python codes if you were an early adopter) that were created using any DREAM3D-NX versions prior to RC-12. Warnings are emitted in the user interface if you load a pipeline that does not define the proper filter parameter keys. A suggestion is listed for each warning that should be close to the correct change. The user should make a back up of their pipeline before hand editing the pipeline in a text editor. You can also use the nxrunner --convert-output [path/to/d3dpipeline] to run a sanity check on your pipeline file.
  • Long visualization operations can lock up the GUI. Please be patient for those operations to end.

What’s New in DREAM3D-NX

Key updates

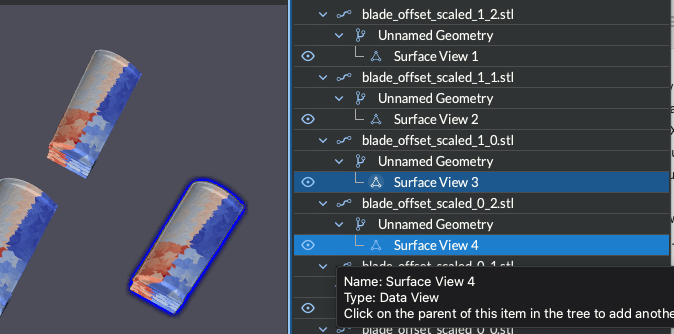

Visualization Outline Glow

DREAM3D-NX Visualization Outline Glow

While you hover over a geometry in the ‘Render Properties’ tree view, the associated geometry will get a subtle outline within the 3D view.

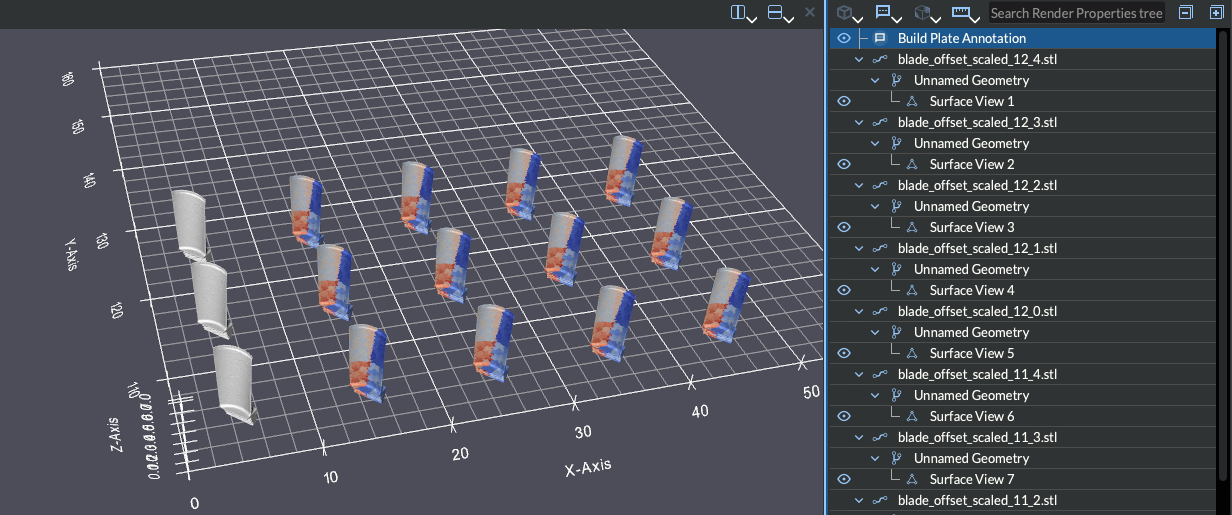

Build Plate Annotation

Build Plate Annotation

If you are wanting to place a “Build Plate” or other Z plane inside the 3D View, you can now use the “Build Plate Annotation” to add one to your 3D view. There are options for both a square and circular build plate.

File System Parameter enhancements to track changes to the file

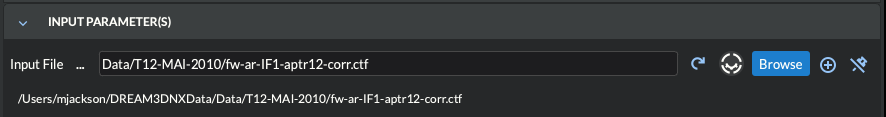

UI Scaled Down

Enhancements were added to the standard File System Parameter that allow the user to click a button to automatically reload the file’s meta data or add a “watcher” that will do the reload each time the file system detects a change. This can be handy for monitoring a running simulation for example.

Other Enhancements and Fixes

In the below tables are summarized git logs from the commits since the last release. Each line should have a short code at the start of the line indicate a general area that the commit falls under. Also include is the Github Pull Request (PR) number. These can be fully reviewed at:

https://www.github.com/bluequartzsoftware/simplnx

https://www.github.com/bluequartzsoftware/DREAM3DNX

DREAM3D NX

  • BUG: Fix bug when creating visualization presets (#713) [e5be4867]
  • BUG: Fixed memory leak issues found when reloading pipelines (#712) [bbca06e3]
  • ENH: Adjust grouping of the quick access buttons at bottom of UI. [b070e7c4]
  • BUG: Fix incompatibilities in VtkBridge for Out-Of-Core APIs (#708) [c78ecc31]
  • PY: Update versions of EbsdLib, expected-lite and nod (#709) [4f2e10e1]
  • ENH: Add support for C++ 20 (#704) [7bbde202]
  • CI: Update CI Machines to use Qt 6.6.3 and Vtk 9.3.1 (#707) [aa8c3ade]
  • ENH: Visualization outline glow highlighting (#691) [286102a8]
  • ENH/BUG: Visualization copy/paste options (#696) [e196237f]
  • ENH: Circular build plate Annotation (#701) [5052752c]
  • ENH: Enable hover cells/points for images larger than 4K x 4K. (#703) [2f2fc743]
  • BUG: Cache data from color preset model roles to speed up proxy model searching (#702) [ca17c7fb]
  • BUG: Fix ruler tool picking bugs (#700) [b3c29f59]
  • Turn on word wrapping for preflight updated value labels [69799094]
  • Revert “BUG: Fix rendering of textures larger than 4K x 4K (#694)” [362479e8]
  • ENH: Render tetrahedral and hexahedral geometries properly (#695) [b98113f0]
  • CI: Update MacOS CI to use Qt 6.6.3 (#697) [c72aee70]
  • ENH: Remove unused code from the StyleSheet Editor [378ee3e1]
  • BUG: Support visibility in multiple split views for VXGlobalSource objects (#692) [8d1939f2]
  • BUG: Add popup warning messages about multi comp array support (#693) [9a7ab54b]
  • BUG: Fix rendering of textures larger than 4K x 4K (#694) [1957986d]
  • ENH: Disable collapsing the visualization settings widget section [cc3d7c14]
  • Updates for compatibility with INodeGeometry1D::findElementsContaintingVert api change (#690) [27e8bcd6]
  • ENH/BUG: Updates to ImportHDF5DataSetWidget (#689) [7034d580]
  • ENH: Fix Threshold widget QSpacer expansion rules. [e18bf991]
  • ENH: Build plate annotation (#687) [e42648ce]
  • VER: Update to RC-13 (#688) [880987a3]
  • Update Conda version [1a401740]
  • Clean up the NX Sphinx documentation generation [e160fadb]
  • Various install and conda changes [cf6607cb]
  • Documentation updates for RC12 [647df52d]
  • Start the release notes [3bbeedd9]

simplnx

  • ENH: Fix compile warnings in FilterUtilities. Init array in DataStore when resizing (#1026) [d534b18d]
  • ENH: Update NXRunner error messages to provide instructions for .json files (#1032) [5aa8dd5f]
  • ENH: Combine and Write STL Files - Allow user to select a Part Number Index to use for numbering. (#1024) [24a870f9]
  • CI: Fixed python tests on asan CI (#1031) [8eccc1bf]
  • CI: Updated nightly ASAN CI to use clang 14 (#1029) [37c3df57]
  • CI: Update GitHub CI to newer GCC & Clang versions. (#1028) [f05b3781]
  • BUG FIX: PeregrineHDF5Reader file system path and Array Type Fixes (#1025) [0332e709]
  • ENH: Allow Crop Image Geometry to only crop a specific dimension (#1021) [c3be139e]
  • BUG FIX: Remove Python plugin import error handling. (#1019) [b9d47447]
  • BUG: Fix Reading Shift File in AlignSectionsList (#1018) [ed04c3ac]
  • ENH: Various ReadPeregrineHDF5File Improvements (#1016) [8346cd36]
  • Fixed C++20 issue with template id in constructor starting in gcc 11 (#1015) [c62fa7f8]
  • ENH: Update required standard to C++20 (#1004) [31406a49]
  • PERF: Inline Keyword and Anonymous Namespace Cleanup (#1013) [639460e9]
  • DOC: ConvertHexGridToSquareGrid Doc Updates (#1014) [37e1159a]
  • COMP: Fix compiler warnings in ComputeSurfaceFeaturesTest (#1003) [8bc16916]
  • BUG: Fix out of core preferences file save bug (#1012) [5f1e159f]
  • BUG: KAM messages should only be printed at 1 a second. (#1008) [a6324cac]
  • FILTERS: Adding MeshIO reader and writers. (#1009) [74a06a32]
  • Remove submodule for geometry creation helper methods. (#1007) [3af3fd55]
  • ENH: Add the ability to resample images as they are read in as an image stack. (#1011) [a2aaa4cb]
  • ENH: Renaming DataAnalysisToolkit to NXDataAnalysisToolkit. (#1010) [1d9a483a]
  • FILTER: Add RemoveFlaggedEdges filter. Update other RemoveFlaggedXXX filters (#986) [d7190167]
  • ENH: Include additional geometry examples and tests. (#1006) [365acfd8]
  • FILTER: SliceTriangleGeometry & CreateAMScanPaths (#984) [8f241745]
  • ENH: More explicit details when a parameter does not validate. (#1005) [34a1c054]
  • ENH: Added a benchmark utility executable (#1002) [90feefba]
  • ENH: Adjust warning text for 0 step value in InitializeDataArray (#999) [cec98fca]
  • BUG: Update geometry find element functions to use static casting (#1000) [d86dbbdc]
  • FILTER/ENH: DBSCAN Filter and Clustering Cleanup (#994) [e0d0cf26]
  • ENH: Update Python Plugin Generation File Structure (#989) [40512e34]
  • BUG: Update node based geometry ‘findElementSizes(bool)’ family of functions (#991) [baf97023]
  • ENH: Reading OEM EBSD HDF5 Files should have better error messages generated (#996) [95f41e7b]
  • ENH: Added DataStructure::getDataAsUnsafe functions (#998) [788e0736]
  • Update vcpkg baseline for HDF5 1.14.4.3 (#997) [68d0e63f]
  • DOCS: Create Python tutorial covering basic usage and filter writing (#925) [07dab90b]
  • ENH: Small fixes for DREAM3D-NX RC-12 release (#988) [5592a973]
  • ENH: Small fixes for RC-12 release [b7958b48]
